Product Details:
Payment & Shipping Terms:
|
| Bowl Diameter: | 450mm | Bowl Length: | 1600mm |
|---|---|---|---|
| Bowl Speed: | 2800r/min | Capacity: | 70m3/h |
| G-Force: | 2578 | Separation Point: | 2-5um |
| Main Drive Motor: | 45kw | Auxiliary Motor Power: | 15kw |
| Weight: | 4500kg | Dimension: | 2950*1860*1250mm |
| Highlight: | solids control centrifuge,drilling mud decanter centrifuge |
||

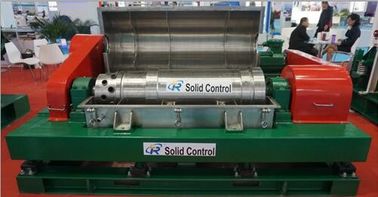

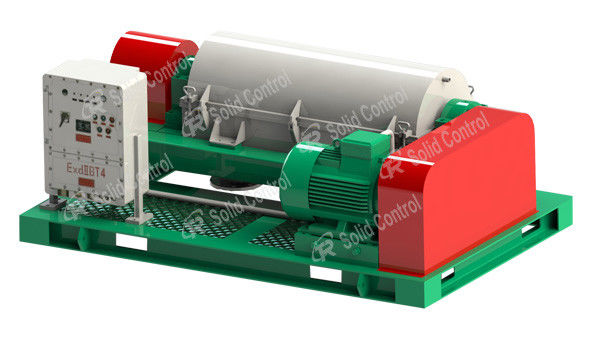

45KW 3 Phase Decanter Centrifuge 4500KG Weight for Oil Purification System
Main Introduction
TR Decanter Centrifuge can meet with different requirements of mud treatment under various drilling conditions, that can do sedimentation and separation for particles more than 2 μm. After treatment, the mud can achieve ideal viscosity and proportion, resulting in better recycling, high efficiency, saving and environment protection.
The feed enters the bowl through a stationary inlet tube and it is accelerated smoothly by an inlet rotor. The resulting drilling mud decanter centrifuge forces make the solids collect on the wall of the bowl. The conveyor and the bowl rotate in the same direction, but at different speeds, which has the effect of moving the solids towards the conical end of the bowl for removal.
Advantages of TR Mud Centrifuge
High Speed Decanting Centrifuge Technical Parameters
| Model | TRLW450N-3 | TRLW550N-1 |
| Bowl Diameter | 450mm | 550mm |
| Bowl Length | 1600mm | 1800mm |
| Max Capacity | 70m 3 /h | 90m 3 /h |
| Rotary Speed | 2800r/min | 2600r/min |
| G-Force | 2578 | 2711 |
| Main Motor Power | 45kW | 55kW |
| Auxiliary Motor Power | 15kW | 22kw |
| Separation point | 2~5μm | 2~5μm |
| Weight | 4500kg | 5800kg |
| Dimension | 2950x1860x1250mm | 3250x1960x1350mm |
(Note: Rotary speed can be adjustable as per user's requirements)
Our Services:
1. We are a professional and well-know manufacturer of decanter centrifuge with more than 10 years experience.
2. Our factory has Automantic production line.
3. We have quality management system and relevant certificates.
4. 24 hours oversea service online.
Our decanter centrifuges have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, first-class service and reasonable prices.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
