Product Details:
Payment & Shipping Terms:
|
| Bowl Diameter: | 355mm | Bowl Speed: | 3200r/min |
|---|---|---|---|
| G-Force: | 2035 | Differential Speed: | 30r/min |
| Auxiliary Motor Power: | 7.5kw | Weight: | 2900kg |
| Bowl Length: | 1250mm | Capacity: | 40m³/h |
| Separation Point: | 2-5μm | Main Drive Motor: | 30kw |
| Ex Standard: | ExdIIBt4/IECEX/A-TEX | Dimension: | 2600*1620*1750mm |
| Highlight: | Waste Management Decanter Centrifuge,2 Phase Drilling Decanter Centrifuge,Drilling Mud Centrifuge 3200r/Min |
||

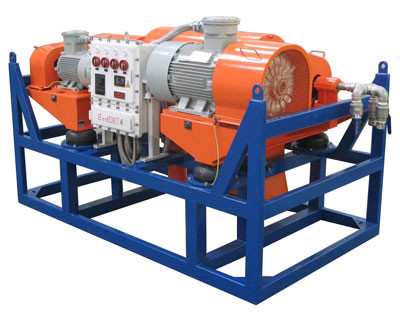

2 Phase Drilling Decanter Centrifuge Machine For Drilling Waste Management
Brief Introduction
Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.
The centrifuges which made by our factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
Main Advantages of TRLW Series Decanter Centrifuge
Technical Specifications of TR Decanting Centrifuge
| Model | TRLW600B-1 | TRLW450N-1 | TRLW450N-2 | TRLW355N-1 | TRLW355NB-1 |
| Bowl Diameter | 600mm | 450mm | 450mm | 355mm | 355mm |
| Bowl Length | 1500mm | 1000mm | 1250mm | 1250mm | 1250mm |
| Bowl Speed | 2200r/min | 2200r/min | 3200r/min | 3200r/min | 0~3200r/min |
| Max Capacity | 90m³/h | 50m³/h | 50m³/h | 40m³/h | 40m³/h |
| G-Force | 815 | 815 | 2035 | 2035 | 0~2035 |
|
Separation |
5~7μm | 5~7μm | 5~7μm | 2~5μm | 2~7μm |
|
Gear Box |
40r/min | 40r/min | 30r/min | 30r/min | 0~3030r/min |
|
Gear Box |
35:1 | 57:1 | |||
|
Main Motor |
55kw | 30kw | 37kw | 30kw | 37kw |
|
Auxiliary |
15kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |
| EX Standard | ExdIIBt4/IECEX/A-TEX | ||||
| Weight | 4800kg | 2700kg | 3200kg | 2900kg | 3200kg |
| Dimension |
2900*1900 |
2600*1860 |
2600*1860 |
2600*1620 |
2600*1620 |
(Note: Rotary speed can be adjustable as per user's requirements)
Main Application
Our TRLW series decanter centrifuge is currently used in Drilling Waste Management, trenchless HDD, oil & gas drilling, tunneling construction, environment protection, Oil Mud Seperation, mining, chemical Industry, food industry, Pharmaceutical Industry, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
