| Bowl Diameter: | 600mm | Bowl Length: | 1500mm |
|---|---|---|---|
| Bowl Speed: | 2200r/min | Capacity: | 90m3/h |
| G-Force: | 815 | Separation Point: | 5-7um |
| Differential Speed: | 40r/min | Main Drive Motor: | 55kw |
| Auxiliary Motor Power: | 15kw | Ex Standard: | ExdIIBt4/IECEX/A-TEX |
| Weight: | 4800kg | Dimension: | 2900*1900*1750mm |
| Highlight: | 815 G Force Drilling Mud Centrifuge,Disposal Use Drilling Mud Centrifuge,Mud Treatment Drilling Fluid Centrifuge |
||

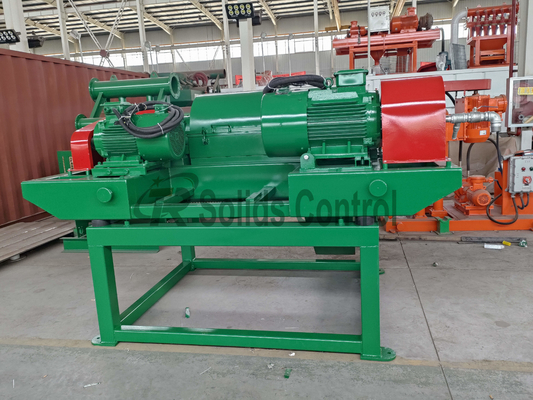

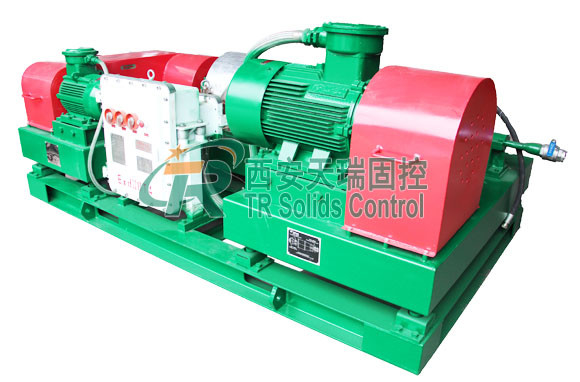

815 G - Force Drilling Mud Centrifuge Drilling Mud Treatment And Disposal Use
Main Introduction
Decanter Centrifuge is driven by two motors. The main motor drives the drum and the outer casing of differential through belts while the auxiliary motor, after the differential shifting speed, drives the spiral propeller. This will make the drum and the spiral propeller rotate in the same direction with a certain differential speed.
The feed enters the bowl through a stationary inlet tube and it is accelerated smoothly by an inlet rotor. The resulting drilling mud decanter centrifuge forces make the solids collect on the wall of the bowl. The conveyor and the bowl rotate in the same direction, but at different speeds, which has the effect of moving the solids towards the conical end of the bowl for removal.
Features of TRLW Series Decanter Centrifuge
Main Specifications of TR Decanting Centrifuge
| Model | TRLW450x842N | TRLW450x1000N | TRLW450x1250N |
| Bowl Diameter | 450mm(17.7inch) | 450mm(17.7inch) | 450mm(17.7inch) |
| Bowl Length | 842mm(33.1inch) | 1000mm(39.3inch) | 1250mm(49.2inch) |
| Max Capacity | 40m 3 /h | 50m 3 /h | 60m 3 /h |
| Rotary Speed | 1800r/min | 1800r/min | 1800r/min |
| G-Force | 815 | 815 | 815 |
| Feed pump | 5.5kW | 5.5kW | 5.5kW |
| Separation point | 5~7μm | 5~7μm | 5~7μm |
| Main Drive | 22kw-4p | 30kw-4p | 30kw-4p |
| Back Drive | 5.5kw-4p | 7.5kw-4p | 7.5kw-4p |
| Weight | 2550kg | 2900kg | 3200kg |
| Dimension | 2360x1850x1750mm | 2600x1860x1750mm | 2900x1860x1750mm |
(Note: Rotary speed can be adjustable as per user's requirements)
Main Application
TRLW series decanter centrifuge is widely used in trenchless HDD, city bored piling, oil & gas drilling, Drilling Waste Management, tunneling construction, environment protection, chemical Industry, food industry, Pharmaceutical Industry, Oil Sludge Dewatering Systems, Coal Bed Gas Solids Control System, Oil Mud Seperation, mining, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
