Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60 M3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 500*500mm |
| Weight: | 140 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | API Mud Hopper,Oil Drilling Mud Hopper |
||

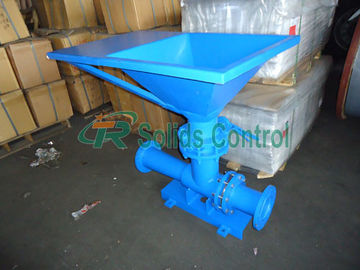

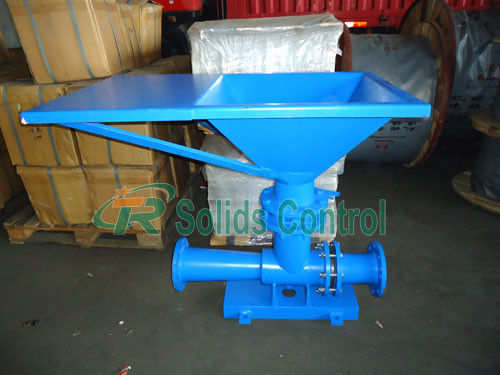

Oil Drilling Mud Mixing Hopper / API Mud Hopper
Product Introduction
The mud mixer is a piece of equipment used together with solids control system together. It can meet the requirements of drilling fluid weighting and mixing for solids control system of 1,500 m to 7,000 m drilling. This equipment is a single jet mixer combined with 45 Kw (or 55 Kw) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers. It features as safe performance and convenient transportation.
Jet mixing device is used to prepare or aggravate drilling fluid,change the density,viscosity,water loss of the drilling fluid.With the decive,the materials and agents can be mixed well.
The jet mixing device is comprised of one sand pump,one jet mixer(or several pumps and mixers) ,valves and manifold.convenient transporation,installation and service,etc.
We can offer various compoud type according to the customers’requirements.
Design Characterstics of TRSL Mud Hopper:
1. Strong Mixing Capability: Venturi tube in outlet.
2. Quick Feeding: Strong suction with high speed jet nozzle.
3. Easy Operation: Standard butterfly valve on inlet.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Packing: Wooden case, or customized packing.
Delivery time: Stock or depending on quantity.
Delivery: By express, truck, train, air, sea.
TR exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
