Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120 M3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | Jet Mud Mixing Hopper,Solid Control Mud Mixing Hopper |
||

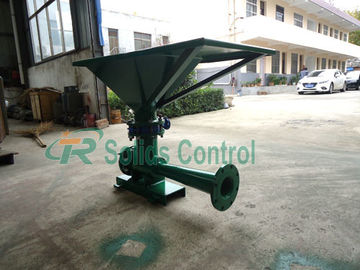

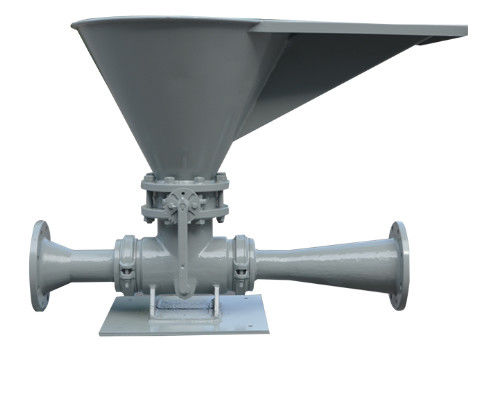

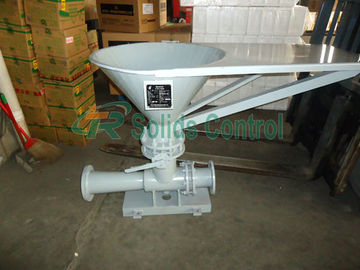

New Design Solid Control Jet Mud Mixer Hopper
Product Overview
Our direct injected mixing hopper is a directly injected mixer of the additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It also can have shearing and hydration system with shear pump. We have two models with metric and British system.
Put drilling fluid materials (betonies, barite powder) and some chemical additives (polymer) into circulation tank to increase total drilling fluid preparation and change drilling fluid density, viscosity, dehydration and so on. Direct inputting will cause a lot of settlement or agglomerate of drilling fluid materials and chemical additives with no gain of dispersed and well-proportioned drilling fluid.
Main Advantages of TRSL Mud Hopper:
1.Quick Feeding: Strong suction with high speed jet nozzle.
2.Strong Mixing Capability: Venturi tube in outlet.
3.Easy Operation: Standard butterfly valve on inlet.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Why you need to choose TR Solids Control ?
As a professional oil and gas service company, TR Solids Control has many good experience is selling and serve for the oilfield industies,quality is the culture of the company, we provide the API and BV certifed products for customer.
Product Application
TRSL series mud mixing hopper is widely used in these industries: Trenchless HDD & Tunnelling, Oil Sludge Dewatering Systems, Oil and Gas Drilling, Drilling Waste Management, Water Drilling, Coal Bed Gas Solids Control System, Oil Mud Seperation, Bored Piling.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
