Product Details:
Payment & Shipping Terms:
|
| Capacity: | 180m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | 180m3/H Mud Mixing Machine,DN150 Mud Mixing Machine |
||

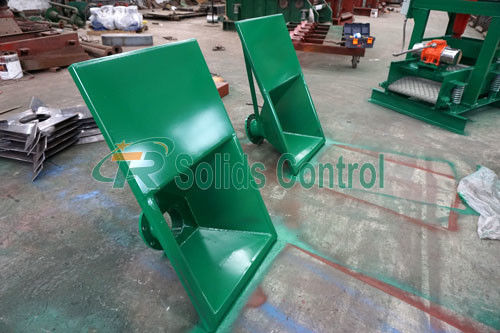

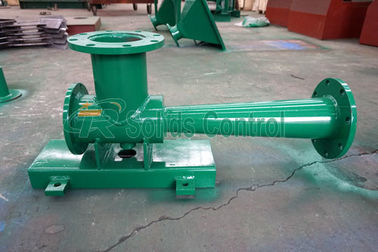

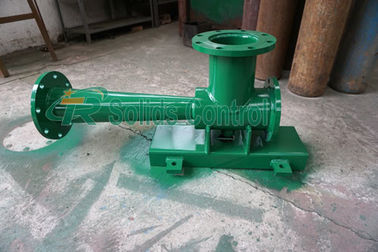

Mud Mixing Hopper and Mud Mixing Machine
Product Description
Mobile hopper is a new mixer of additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It can mix powder material, and also suck liquid chemical additives.
TRSL series mud hopper are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays mud hopper is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Welcome your inquiry at any time! Jet Mud Mixer according to the user requirements.It is designed by solids control bentonite mud mixer,drilling mud tank jet mixer.
Key Advantages of TRSL Mud Hopper:
1.Quick Feeding: Strong suction with high speed jet nozzle.
2.Strong Mixing Capability: Venturi tube in outlet.
3.Easy Operation: Standard butterfly valve on inlet.
4. The material of the drilling mud mixing hopper can be either Stainless Steel or carbon steel.
5. Venturi type drilling mud mixing hopper and vortex type mud mixing hopper are both avaliable for option.
Main Specifications of Jet Mud Mixer & Mud Hopper
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
China manufacturer TR Solids Control offer the world with drilling mud jet mud mixing.We are an exporter of drilling fluid jet mud mixing hopper for Indian, Russian,middle east.etc. We manufacture and design drilling bentonite mud mixing hopper unit,drilling mud tank jet mixer. We supplied to Oilfield Company of the Turkey, Venezuela, Indonesia, Russia, the United Arab Emirates,Turkey,and Morocco and United Arab Emirates etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
