Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60 M3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 500*500mm |
| Weight: | 140 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | Solid Control Mud Mixing Hopper,Oilfield Mud Mixing Hopper |
||

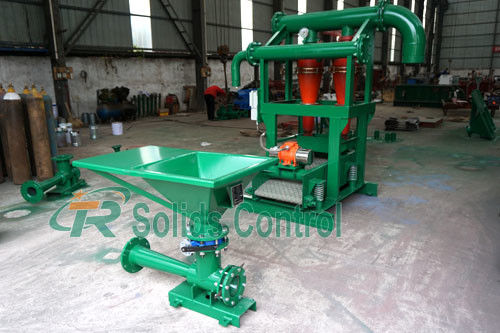

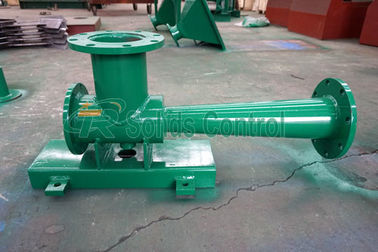

Oilfield Solid Control Jet Mud Mixer / Mixing Hopper
Main Introduction
Mud mixing hopper is a corresponding equipment of solids control system, which meet the needs of solids control drilling fluid weighting and compounding in case of different drilling depth. It is combined with a sand pump(or many sets) and a Jet mixing hopper(or many sets), connected by manifold and valve then installed on a base. Aggravated hopper and sand pump can be connected by manifold and valve, or installed separately.
Put drilling fluid materials (betonies, barite powder) and some chemical additives (polymer) into circulation tank to increase total drilling fluid preparation and change drilling fluid density, viscosity, dehydration and so on. Direct inputting will cause a lot of settlement or agglomerate of drilling fluid materials and chemical additives with no gain of dispersed and well-proportioned drilling fluid.
Main Characterstics of TRSL Mud Hopper:
1. High feed rates for all types of solids.
2. Exclusive jet nozzle/venturi design.
3. Low-pressure, high-volume design.
4. Suitable for long return lines or high tanks.
5. Efficient shearing to prevent balls or slugs.
6. Rapid, uniform dispersion.
7. Built-in sack table and receiving basin.
8. Flexible operation for weighted or underweighted mixing applications.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our company is willing to cooperate and make common progress with friends at home and abroad with first-calss products, first-class service and reasonable prices.
TR exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
