Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60 M3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 500*500mm |
| Weight: | 140 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | HDD Mud Hopper,60 M3/H Mud Hopper |
||
Mud Mixing Hopper for HDD Project Capacity 60 m3/h
Main Introduction

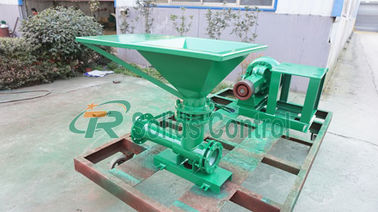

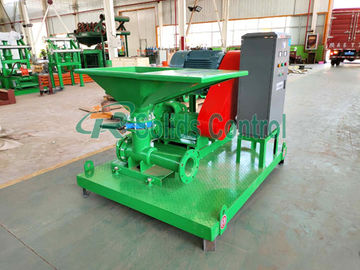

Mud mixing hopper is a corresponding equipment of solids control system, which meet the needs of solids control drilling fluid weighting and compounding in case of different drilling depth. It is combined with a sand pump(or many sets) and a Jet mixing hopper(or many sets), connected by manifold and valve then installed on a base. Aggravated hopper and sand pump can be connected by manifold and valve, or installed separately.
The jet mixing device is comprised of one sand pump,one jet mixer(or several pumps and mixers) ,valves and manifold.convenient transporation,installation and service,etc.
We can offer various compoud type according to the customers’ requirements.
Design Characterstics of TRSL Mud Hopper:
1. High feed rates for all types of solids.
2. Exclusive jet nozzle/venturi design.
3. Low-pressure, high-volume design.
4. Suitable for long return lines or high tanks.
5. Efficient shearing to prevent balls or slugs.
6. Built-in sack table and receiving basin.
7. Flexible operation for weighted or underweighted mixing applications.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our company is willing to cooperate and make common progress with friends at home and abroad with first-calss products, first-class service and reasonable prices.
Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
