Product Details:
Payment & Shipping Terms:
|
| Capacity: | 180m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | 180m3/H Mud Mixing Hopper,DN150 Mud Mixing Hopper |
||
High Efficient 180m3/h Mud Mixing Hopper
Product Description

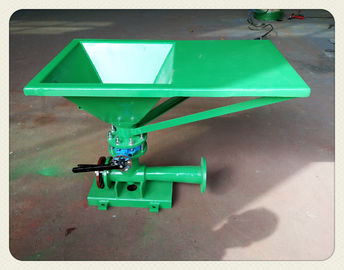

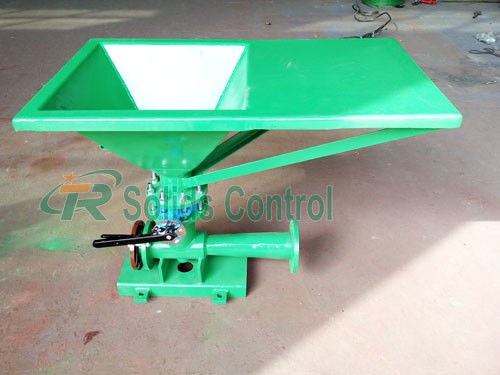

TRSL Series Hopper is used to concoct the drilling fluids and to change its density and viscosity. mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. In addition, it’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.

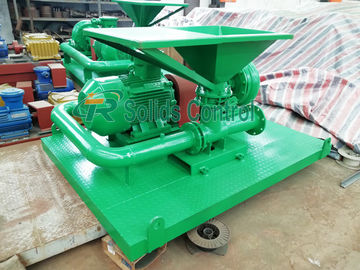

Jet mud mixer is a combination of centrifugal pump and mixing hopper with pipelines. It is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid. TRSLH series jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.
Main Advantages of TRSL Mud Hopper:
1.Quick Feeding: Strong suction with high speed jet nozzle.
2..Easy Operation: Standard butterfly valve on inlet.
3. Strong Mixing Capability: Venturi tube in outlet.
4. Venturi type drilling mud mixing hopper and vortex type mud mixing hopper are both avaliable for option.
5. The material of the drilling mud mixing hopper can be either Stainless Steel or carbon steel.
Technical Specifications of Jet Mud Mixer & Mud Hopper
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
China manufacturer TR Solids Control offer the world with drilling mud jet mud mixing.We are an exporter of drilling fluid jet mud mixing hopper for Indian, Russian,middle east.etc. We manufacture and design drilling bentonite mud mixing hopper unit,drilling mud tank jet mixer. We supplied to Oilfield Company of the Turkey, Venezuela, Indonesia, Russia, the United Arab Emirates,Turkey,and Morocco and United Arab Emirates etc.
Now our products are not only widely used in big oil field and other domestic markets, but also exported to Central Asia, Middle East, South-east Asia, North America, South America and other countries in the world. If you have any new inquiry, welcome to contact with us at any time.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
