Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | Oilfield Mud Mixing Equipment,Drill Rig Mud Mixing Equipment |
||

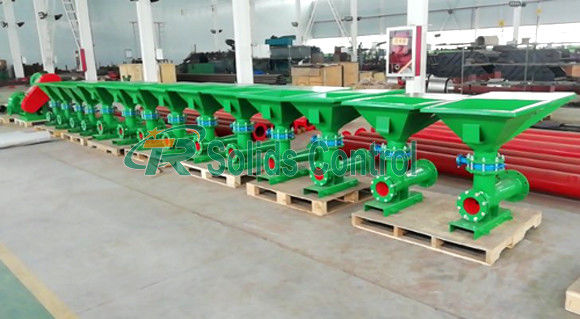

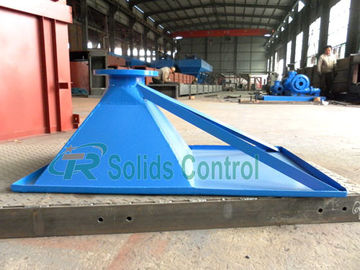

Drill Rig Oilfield Mud Mixer Hopper
Main Introduction
Our jet mud mixer can be matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can improve pressure head of mixed liquid, enhance dispersion effect of material, make the material recycle and mix enough in the mud tank.
TRSL Series Hopper is used to concoct the drilling fluids and to change its density and viscosity. mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. In addition, it’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.
Main Features of TRSL Mud Hopper:
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
TR Solids Control offer the world with drilling mud jet mud mixing.We are an exporter of drilling fluid jet mud mixing hopper for Indian, Russian,middle east.etc. We manufacture and design drilling bentonite mud mixing hopper unit,drilling mud tank jet mixer. We supplied to Oilfield Company of the Turkey, Venezuela, Indonesia, Russia, the United Arab Emirates,Turkey,and Morocco and United Arab Emirates etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
