Product Details:
Payment & Shipping Terms:
|
| Capacity: | 500GPM | Shale Shaker: | TRZS703/TRZS585 |
|---|---|---|---|
| Mud Cleaner: | TRQJ250*1S-100*8N | Desilter Cyclone: | 4"*8pcs |
| Supply Pump Model: | TRSB6*5-11J*2pcs | Slurry Pump Model: | TRSB6*5-12J |
| Jet Mud Mixer: | TRSLH150-35(37kw) | Mud Agitator: | TRJBQ7.5 |
| Weight: | 17000kg | Dimension: | 10000*2360*4228mm |
| Highlight: | HDD Mud Recycler,Solids Control Mud Recycler |
||

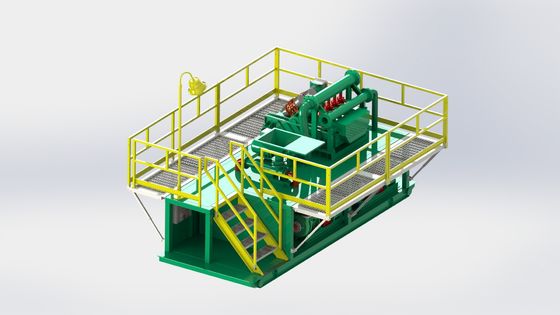

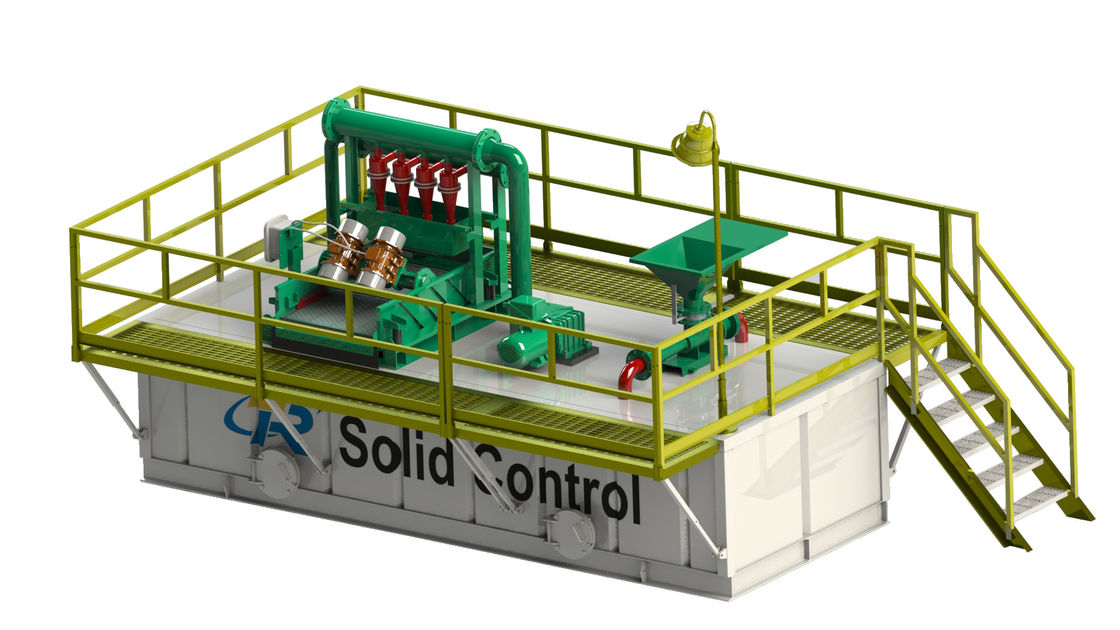

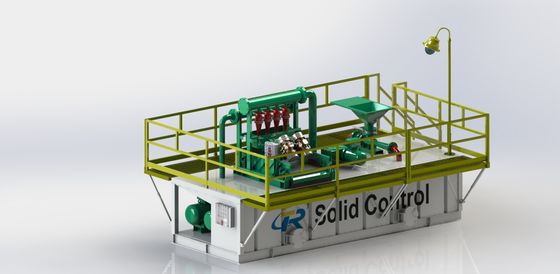

HDD Drilling Mud Solids Control System Mud Recycler
System Introduction
HDD mud recycling system is designed according to the requirements of trenchless technology. It’s applied to handle the returned mud from underground in Horizontal Directional Drilling. It can separate big particles by shale shaker and mud cleaner, then stirs the mud evenly by mud agitator. Finally we can recycle the mud by using centrifugal pump connected to horizontal directional drilling system. TR HDD mud recovery system can remarkably improve mud treatment efficiency, reduce mud cost of horizontal directional drilling and greatly increase rate of penetration.
We can also design and manufacture of directional drilling purification system, shield mud purification system, gas layer exploration mud purification system, the mining mud purification system, channel dredging mud purification system, such as series of projects.
Function of Our HDD mud recovery system
Technical Parameters of TR HDD Mud System
| Model | TRHDD-200 | Model | TRHDD-500 | TRHDD-1000 |
| Capacity | 200GPM (50m3 /h) | Capacity | 500GPM (120m3 /h) | 1000GPM (240m3 /h) |
| Shale Shaker | TRZS752S | Shale Shaker | TRZS703/TRZS585 | TRZS703/TRZS585 |
|
Upper Screen Area |
0.875m2 |
Screen Area |
2.7m2 | 2X2.7m2 |
|
Upper Screen Area |
1.35m2 |
Mud Cleaner |
TRQJ250X1S-100X8N | TRQJ250X2S-100X12N |
|
Hydrocyclone |
4" |
Mud Cleaner Mud Cleaner |
10"×1pcs | 10"×2pc |
|
Hydroclycolone Qty |
4 pcs |
Desilter Cyclone |
4"×8pcs | 4"×12pcs |
|
Supply Pump Model |
TRSB4X3-12J |
Bottom Screen Area |
1.35m2 | 2.12m2 |
| Slurry Pump Model | TRSB4X3-11J | Supply Pump | TRSB6X5-11J*2 | TRSB8X6-11J*2 |
| Mud Hopper | TRSLH100 | Slurry Pump | TRSB6X5-12J | TRSB8X6-12J |
| Gross Power | 44kW | Jet Mud Mixer | TRSLH150-35(37KW) | TRSLH150-35(45KW) |
| Total Volume | 5m3 | Mud Agitator | TRJBQ7.5 | TRJBQ7.5 |
| Dimension | 4000×2360×2940mm | Gross Power | 130kW | 184kW |
| Weight | 5500kg | Total Volume | 15m3 | 30m3 |
| Dimension | 10000×2360×4228mm | 12100×2630×4438mm | ||
| Weight | 17000kg | 20000kg |
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
