Product Details:
Payment & Shipping Terms:
|
| Bowl Diameter: | 355mm | Bowl Length: | 1250mm |
|---|---|---|---|
| Bowl Speed: | 3200r/min | Capacity: | 40m3/h |
| G-Force: | 2035 | Separation Point: | 2-5um |
| Differential Speed: | 30r/min | Main Drive Motor: | 30kw |
| Auxiliary Motor Power: | 7.5kw | Ex Standard: | ExdIIBt4/IECEX/A-TEX |
| Color: | Green, Orange, Blue Etc. | Warranty: | 12 Months |
| Highlight: | Drilling Decanter Centrifuge,40m3/h Decanter Centrifuge,SS316L Decanter Centrifuge |
||

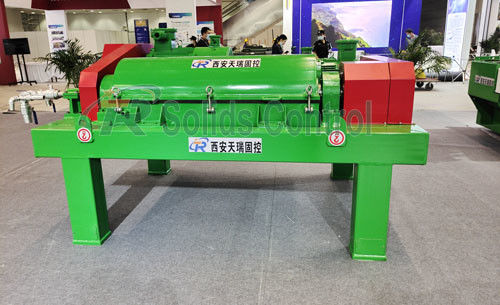

Oilfield High Speed Decanter Centrifuge with Capacity 40m3/h
Product Overview
Horizontal spiral centrifuge is one of our company main products. According to the requirement of the material used, we design the horizontal spiral centrifuge with one motor, two motors driving. At the same time, we design two motors separately on both sides of the machine and motors on the same place of the machine. We also develop three column horizontal spiral centrifuge, used in the separation of coal tar oil, water, slag in the industry, in petrochemical in the separation of oil, water, slag.
TRLW series mud centrifuges are designed with practical structure and environmental friendly concept. The middle speed, high speed and variable-speed decanting centrifuges can separate and remove solid phrases in drilling fluids with safe, consistent, and efficient working performance, satisfying different request for solids control in oil drilling, drilling waste management, and other industrial applications.
Key Characterstics of TR Decanter Centrifuge
Technical Sheet of TR Decanter Centrifuge
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user's requirements)
APPLICATION
As the leading manufacturer for oil gas drilling mud system, TR Solids Control products is certified by API, Europe CE, and Russia TP and TC. The explosion proof standard can be IEC Ex, or ATEX certified for developed countries for Zone 1 and Zone II application.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
