Product Details:
Payment & Shipping Terms:
|
| Bowl Diameter: | 600mm | Bowl Length: | 1500mm |
|---|---|---|---|
| Bowl Speed: | 2200r/min | Capacity: | 90m3/h |
| Separation Point: | 5-7um | Differential Speed: | 40r/min |
| Main Drive Motor: | 55kw | Auxiliary Motor Power: | 15kw |
| Ex Standard: | ExdIIBt4/IECEX/A-TEX | Weight: | 4800kg |
| Voltage: | 220,380,440,460V | Application: | Energy & Mining |
| Highlight: | 90m3/H Drilling Mud Centrifuge,600mm Bowl Drilling Mud Centrifuge,Energy Mining Drilling Mud Centrifuge |
||

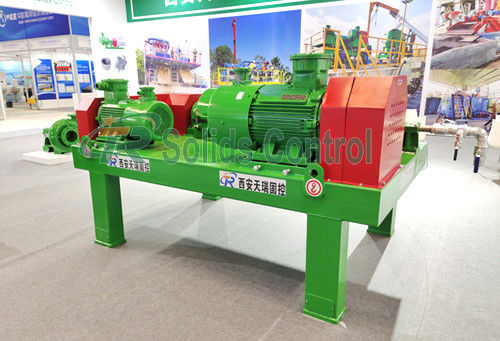

Green Color Oilfield Decanter Centrifuge Capacity 90m3/h
Product Introduction
Mud decanting centrifuge can recycle the barite. It's important by cleaning out the small particle(2μm-7μm) from the drilling fluids to control fluids density and viscosity and improve the efficiency of well drilling.
The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%. The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.
Product Application
Technical Parameters of TR Decanting Centrifuge
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user's requirements)
TR Solids Control is a lead and professional manufacturer of decanter centrifuge. TR decanter centrifuge is high in recovery rate, effective in solids control and remarkable in the reduction of cost spent on drilling mud resupplying and management. Separation point of TR decanter centrifuge can meet as fine as 2~7 microns.
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
