Product Details:
Payment & Shipping Terms:
|
| Capacity: | 180m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | 750x750mm Mud Mixing Hopper,Mud Mixing Hopper 180m3/H,Jet Nozzle Mud Mixing Equipment |
||

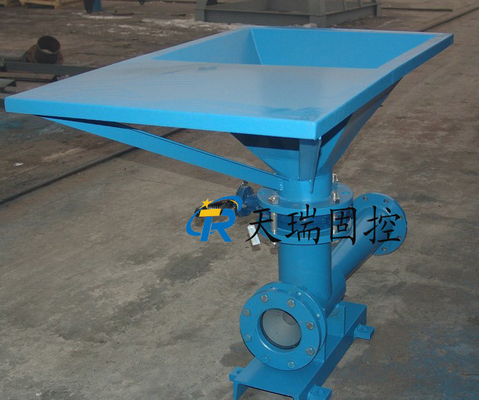

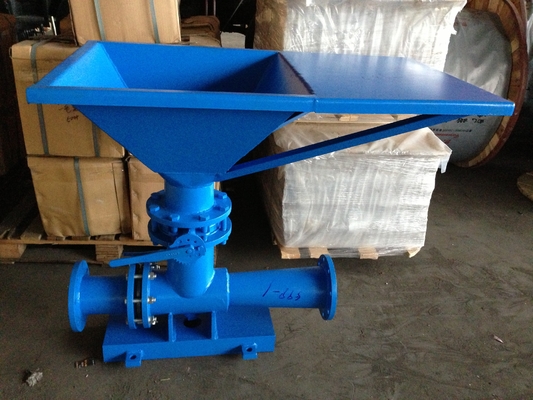

API Solid Control Drilling Mud Mixing Hopper
Main Introduction
The mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. It’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.
TRSL series mud hopper are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays mud hopper is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Welcome your inquiry at any time! Jet Mud Mixer according to the user requirements.It is designed by solids control bentonite mud mixer,drilling mud tank jet mixer.
Main Advantages of TRSL Mud Hopper:
1) Easy operation
Standard butterfly valve on inlet.
2) Quick feeding
Strong suction with high speed jet nozzle.
3) Strong mixing capability
Venturi tube in outlet.
Technical Specifications of Jet Mud Mixer & Mud Hopper
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our Advantage
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
