Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | 600x600mm Mud Mixing Hopper,DN150 Mud Mixing Equipment,Oil Well Drilling Mud Mixing Hopper |
||

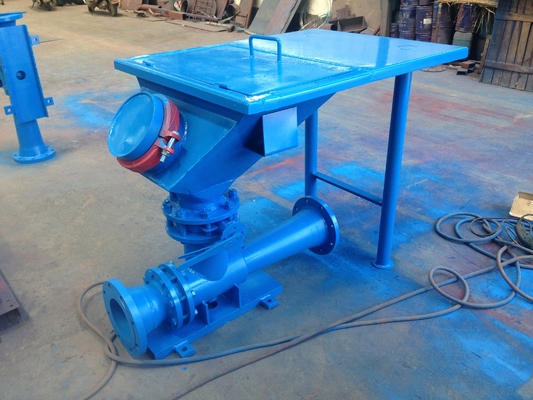

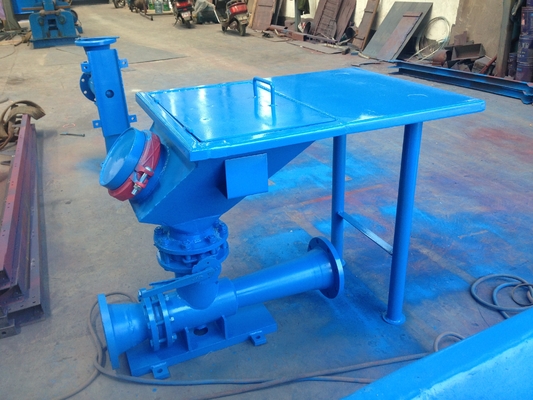

Mud Mixing Hopper Solid Control Equipment
Introduction
The mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. It’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.
TRSL serial direct injected mixing hopper is a directly injected mixer of the additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It also can have shearing and hydration system with shear pump. We have two models with metric and British system.
Features of TRSL Mud Hopper:
1) Quick feeding
Strong suction with high speed jet nozzle.
2) Strong mixing capability
Venturi tube in outlet.
3) Easy operation
Standard butterfly valve on inlet.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
We exported directly or sold with supporting drillers to more than 30 countries and regions in the world such as Russia, United States, Australia, Latin America and the Middle East etc. Making sure to support first-class solid-control equipment with developing “Made in China” as our own tasks, holding forward-looking to each task, every drawing has technicity to direct, every process has worker to follow up and every product has QC to check on. To provide customers with a full set of solid-control equipment solutions effectively is our company’s goal.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
