Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120 M3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | 120m3/H Fast Feeding Mud Hopper,High Speed Nozzle Mud Hopper |
||

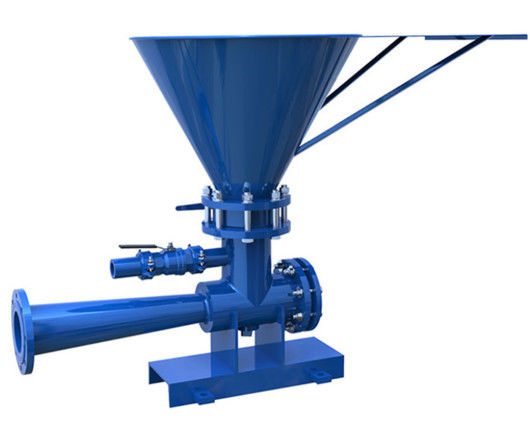

Large Capacity Mud Mixing Hopper Oil Drilling Well
Product Introduction
Put drilling fluid materials (betonies, barite powder) and some chemical additives (polymer) into circulation tank to increase total drilling fluid preparation and change drilling fluid density, viscosity, dehydration and so on. Direct inputting will cause a lot of settlement or agglomerate of drilling fluid materials and chemical additives with no gain of dispersed and well-proportioned drilling fluid.
The mud mixer is a piece of equipment used together with solids control system together. It can meet the requirements of drilling fluid weighting and mixing for solids control system of 1,500 m to 7,000 m drilling. This equipment is a single jet mixer combined with 45 Kw (or 55 Kw) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers. It features as safe performance and convenient transportation.
Main Characterstics of TRSL Mud Hopper:
1. Quick Feeding: Strong suction with high speed jet nozzle.
2. Strong Mixing Capability: Venturi tube in outlet.
3. Easy Operation: Standard butterfly valve on inlet.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Why you need to choose TR Solids Control ?
As a professional oil and gas service company, TR Solids Control has many good experience is selling and serve for the oilfield industies,quality is the culture of the company, we provide the API and BV certifed products for customer.
TR Solids Control is a professional petroleum equipment company, has right of foreign trade(import and export), mainly engaged in drilling solid-control equipment production including sand pump series, WJQ serial shear pump, LW serial centrifuge, ZS/Z serial shale shaker, CS desander, CN desilter, QJ serial integrated cleaner, ZCQ vacuum deaerator, screen of shale shaker, mixing hopper, cyclone mixer, JB/W serial mud agitator, special screw conveyor and explosion-proof control box of various models etc. .We have passed American Petroleum Institute (API), Norwegian DNV and American Bureau of Shipping (ABS) authoritative on-spot inspections.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
