Product Details:
Payment & Shipping Terms:
|
| Capacity: | 240m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 170 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | Low Pressure Mud Mixing Hopper,DN150 Oilfield Mud Mixing Equipment,Epoxy Coated Mud Mixing Hopper |
||

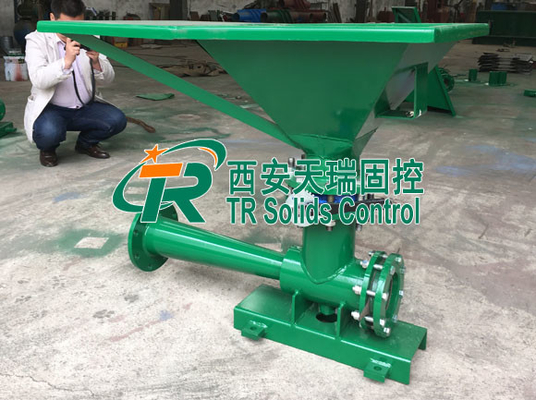

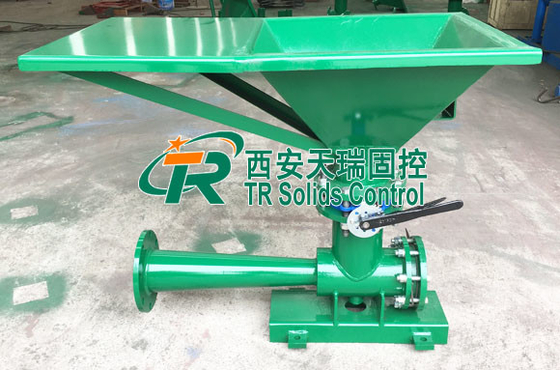

Mud Mixing Hoppers in Chemicals / Oilfield Solid Control
Product Introduction
Our direct injected mixing hopper is a directly injected mixer of the additive material of drilling fluid. It is mainly used to mix drilling fluid and additives quickly and uniformly to improve drilling fluid's performance. It also can have shearing and hydration system with shear pump. We have two models with metric and British system.
Jet mixing device is used to prepare or add more drilling fluid, change the density, viscosity, water loss of the drilling fluid.
With this device, the raw materials for drilling fluid could be mixed and devided well.
There are two kinds of hopper:
* Rotational flow Hopper
* Jet Hopper
Main Advantages of TRSL Mud Hopper:
1. High feed rates for all types of solids.
2. Exclusive jet nozzle/venturi design.
3. Low-pressure, high-volume design.
4. Suitable for long return lines or high tanks.
5. Efficient shearing to prevent balls or slugs.
6. Rapid, uniform dispersion.
7. Epoxy coated.
8. Built-in sack table and receiving basin.
9. Flexible operation for weighted or underweighted mixing applications.
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Choose us as supplier. Our factory and company are Quality Management System ISO 9001 and API certified. TR Solids Control operate international oil gas drilling mud separation system sales, service, manufacturing, distribution serivce. Buy drilling cuttings jet mud mixer from China manufacturer.China leading technology,100% Quality Control, Best pirce,Reliable service.Your best hydraulic bentonite mud mixer,drilling mud tank jet mixer deal starts here.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
