Product Details:
Payment & Shipping Terms:
|
| Capacity: | 180m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | Tunnel Subway Drilling Mud Mixing Hopper,Butterfly Valve Mud Mixing Hopper,180m3/H Mud Mixing Equipment |
||

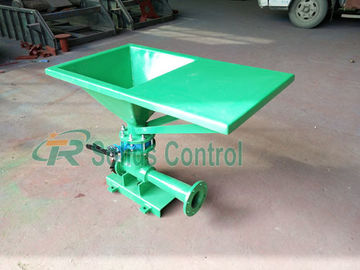

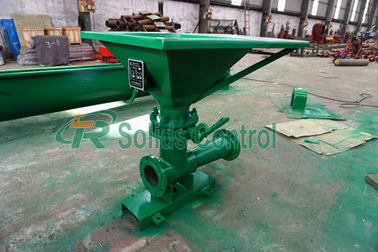

API Oilfield Solid Control System Mud Hopper
Product Introduction
Drilling mud mixing hopper unit bentonite mud mixing system for solids control,China drilling mud hopper,mud tank jet mixer manufacturer.
In the meantime of configuration or the increase of drilling fluid volume, changing the drilling fluid density, viscosity, water loss and so on, drilling fluid materials (bentonite, barite powder) and the corresponding chemical additives (polymer) are needed in the circulation tank. mud mixing hopper can increase the liquid in the tube shear force, improve the dispersion effect and the mixing liquid pressure head, so that the material in the tank can be fully mixed, then make better effect when it's used with shear pump.
Main Advantages of TRSL Mud Hopper:
1. Quick Feeding: Strong suction with high speed jet nozzle.
2. Strong Mixing Capability: Venturi tube in outlet.
3. Easy Operation: Standard butterfly valve on inlet.
4. The material of the drilling mud mixing hopper can be either Stainless Steel or carbon steel.
5. Venturi type drilling mud mixing hopper and vortex type mud mixing hopper are both avaliable for option.
Technical Parameters of Jet Mud Mixer & Mud Hopper
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our group have more than 10 years export experience and 9 subsidiary factories, more than 500 employees. We are the first-class supplier of resources market of SINOPEC and CNPC. Our foreign customers are mainly from America, Central Asia, Russia, Southeast Asia, Middle East, etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
