| Capacity: | 180m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 165kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | Drilling Fluids Mud Mixing Hopper,Solids Control Mud Mixer Hopper |
||
Mud Mixing Hopper for Oilfield and Subway
Product Description

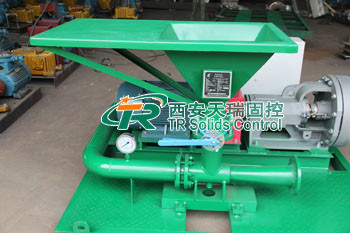

Mud mixing hopper is a corresponding equipment of solids control system, which meet the needs of solids control drilling fluid weighting and compounding in case of different drilling depth. It is combined with a sand pump(or many sets) and a Jet mixing hopper(or many sets), connected by manifold and valve then installed on a base. Aggravated hopper and sand pump can be connected by manifold and valve, or installed separately.

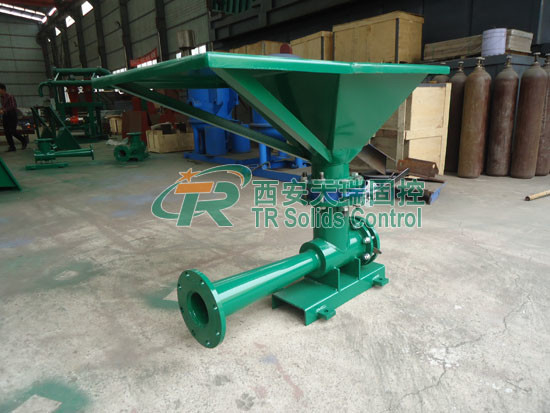

TRSL Series Hopper is used to concoct the drilling fluids and to change its density and viscosity. mud hopper is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. In addition, it’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.
Main Benefits of TRSL Mud Hopper:
1. Quick Feeding: Strong suction with high speed jet nozzle.
2..Easy Operation: Standard butterfly valve on inlet.

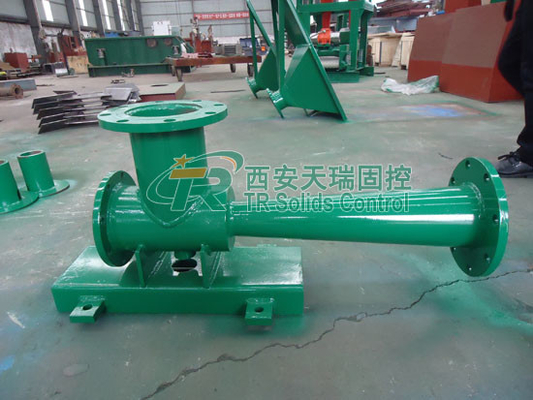

3. Strong Mixing Capability: Venturi tube in outlet.
4. Venturi type drilling mud mixing hopper and vortex type mud mixing hopper are both avaliable for option.
5. The material of the drilling mud mixing hopper can be either Stainless Steel or carbon steel.
Specifications of Jet Mud Mixer & Mud Hopper
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
China manufacturer TR Solids Control offer the world with drilling mud jet mud mixing.We are an exporter of drilling fluid jet mud mixing hopper for Indian, Russian,middle east.etc. We manufacture and design drilling bentonite mud mixing hopper unit,drilling mud tank jet mixer. We supplied to Oilfield Company of the Turkey, Venezuela, Indonesia, Russia, the United Arab Emirates,Turkey,and Morocco and United Arab Emirates etc.
Moreover, we have established a complete quality control system, all products & equipments are manufatured as per international standard and API standard.
Besides other spares and consumables, we specialize in providing high-quality drilling tools, top drive spares and TDS repair/maintenance service.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
