Product Details:
Payment & Shipping Terms:
|
| Capacity: | 240m3/h | Work Pressure: | 0.25 To 0.4Mpa |
|---|---|---|---|
| Inlet Diameter: | DN150 | Hopper Dimension: | 600*600mm |
| Weight: | 170 Kg | Application: | Oil Well Drilling, Tunnel, Subway |
| Highlight: | 600*600mm Jet Mud Mixing Hopper,240m3/h Mud Mixer Hopper,Oilfield Drilling Mud Mixing Hopper |
||

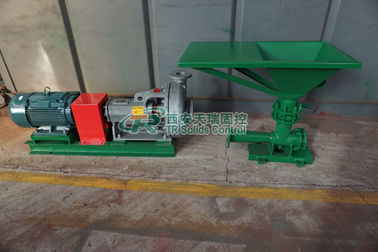

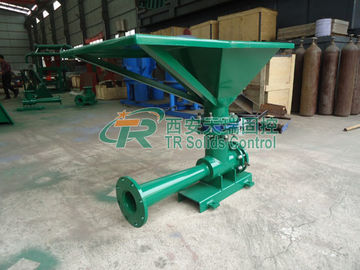

Oilfield Drilling Jet Mud Hopper 600*600mm
Product Introduction
Jet mixing device is used to prepare or add more drilling fluid, change the density, viscosity, water loss of the drilling fluid.
With this device, the raw materials for drilling fluid could be mixed and devided well.
There are two kinds of hopper:
* Rotational flow Hopper
* Jet Hopper
Combining with venturi tube and original jet nozzle, new mud mixing hopper specializes in simple structure and easy manipulation which can satisfy the drilling fluid's need on weighting and compounding from 1500m to 9000m depth. mud mixing hopper can be customized to be double mud mixing hopper based on customer's need.

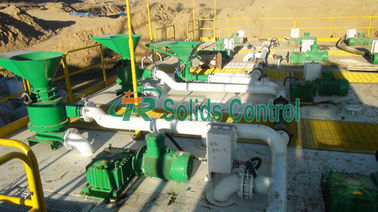

Our jet mud mixer can be matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can improve pressure head of mixed liquid, enhance dispersion effect of material, make the material recycle and mix enough in the mud tank.
Design Advantages of TRSL Mud Hopper:
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
1.How long is your delivery time?
It is according to the model and quality. Generally it is 30 days if the machines are in stock.
2.What is terms of payment?
Normally we can accept T/T or L/C basis.
3. What is the Shipping way?
Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air.
Bulk order: we suggest by air or by sea.
4. How about the Quality Control?
We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
