Product Details:
Payment & Shipping Terms:
|
| Bowl Diameter: | 600mm | Bowl Length: | 1500mm |
|---|---|---|---|
| Bowl Speed: | 2200r/min | Capacity: | 90m3/h |
| G-Force: | 815 | Separation Point: | 5-7um |
| Differential Speed: | 40r/min | Main Drive Motor: | 55kw |
| Auxiliary Motor Power: | 15kw | Ex Standard: | ExdIIBt4/IECEX/A-TEX |
| Weight: | 4800kg | Dimension: | 2900*1900*1750mm |
| Highlight: | Solid Liquid Drilling Decanter Centrifuge,SKF Bearings Decanter Centrifuge,Drilling Mud Centrifuge 55kw |
||

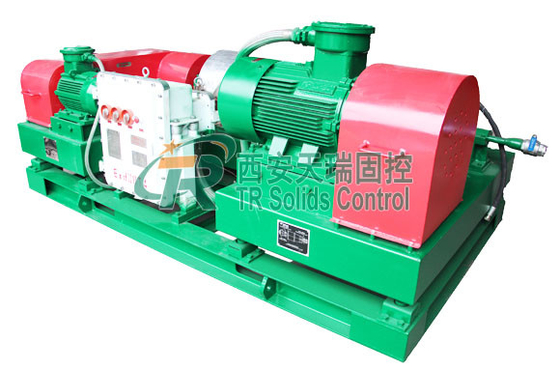

Capacity 90m3/h Solid Liquid Drilling Decanter Centrifuge
Product Introduction
Mud decanting centrifuge can recycle the barite. It's important by cleaning out the small particle(2μm-7μm) from the drilling fluids to control fluids density and viscosity and improve the efficiency of well drilling.
The use of centrifuge for filtration and separation is always an experimental technology. The technicians are required to analyze the actual working conditions and specific requirements, select appropriate equipment by using the mastered separation technology, in order to optimize or obtain the separation process parameters through professional debugging, then leads to a better and efficiency separation result, and lower the costs and energy.
The core of decanter centrifuges use the stainless steel. Residue outlet use strong alloy steel. Bearing use PAG (Germany brand) and SKF (Sweden brand). Electric parts use the Siemens and Schneider chint brand ( ATEX , IEC,EX standard).
Technical Specifications of Decanting Centrifuge
| Model | TRGLW355N-1 | TRGLW450N-2 | TRGLW450N-3 | TRGLW550N-1 |
| Bowl Diameter | 355mm (14inch) | 450mm (17.7inch) | 450mm (17.7inch) | 550mm (22inch) |
| Bowl Length | 1250mm(49.2inch) | 1250mm(49.2inch) | 1600(64inch) | 1800mm(49.2inch) |
| Max Capacity | 40m3/h | 60m3/h | 70m3/h | 90m3/h |
| Max Speed | 3800r/min | 3200r/min | 3200r/min | 3000r/min |
| Rotary Speed | 3200r/min | 3000r/min | 2800r/min | 2600r/min |
| G-Force | 3018 | 2578 | 2578 | 2711 |
| Separation | 2~5μm | 2~5μm | 2~5μm | 2~5μm |
| Main Drive | 30kW-4p | 30kW-4p | 45kW-4p | 55kW-4p |
| Back Drive | 7.5kW-4p | 7.5kW-4p | 15kW-4p | 22kW-4p |
| Weight | 2950kg | 3200kg | 4500kg | 5800kg |
| Dimension | 2850X1860X1250 | 2600X1860X1250 | 2950X1860X1250 | 3250X1960X1350 |
(Note: Rotary speed can be adjustable as per user's requirements)
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
