Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Matching Pump: | TRSB5*4-14J |
|---|---|---|---|
| Motor Power: | 37kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 30mm |
| Hopper Dimension: | 600*600mm | Burden Speed: | <60kg/min |
| Weight: | 1300kg | Dimension: | 2000*1650*1100mm |
| Highlight: | Oilfield Drilling Jet Mud Mixing System,Solid Control Jet Mud Hopper,120m3/H Mud Mixing Equipment |
||

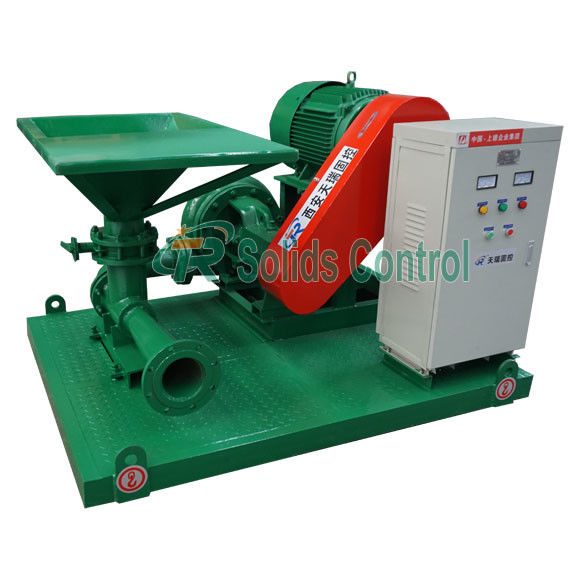

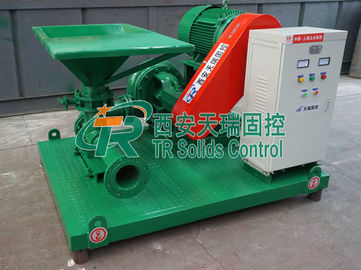

API Oilfield Drilling Solid Control Mud Jet Mud Hopper Mixer for Sale
Product Introduction
TRSLH series Jet Mud Mixer is used to concoct the drilling fluids and to change its density and viscosity. This device can satisfy the fluid weighting & mixing of solids control system used for 1500m-9000m drilling. It is the equipment to match with drilling solids control equipment, generally used for mixing and adjusting the proportion of drilling fluid, changing the density, viscosity and water loss etc. It has much excellent operation if being matched with shear pump, and also can be designed to single or double jet mud mixer as the clients’ requirements. TR jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base with pipe valves. Its hopper and centrifugal pump either can be combined or be installed separately.
Our jet mud misers are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays our jet mud mixer is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Welcome your inquiry at any time!
Advantages of TRSLH Series Jet Mud Mixer:
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our Services:
1. Material: Iron Q235B from BAOSTEEL with quality certificate.
2. Electric components: The well-known brands as Siemens, Schneider or ABB.
3. Motor: Adopt our national famous brand explosion-proof motor.
4. Painting: Anti-rust treatment: Galvanizing treatment for the base, hopper and the pipes.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
