Product Details:
Payment & Shipping Terms:
|
| Capacity: | 60m3/h | Matching Pump: | TRSB4*3-11J |
|---|---|---|---|
| Motor Power: | 11kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 100mm | Nozzle Diameter: | 25mm |
| Hopper Dimension: | 500*500mm | Burden Speed: | <40kg/min |
| Weight: | 1100kg | Dimension: | 2000*1650*1100mm |
| Highlight: | Trenchless Tunneling Mud Cleaning Mixer,Drilling Fluid Jet Mud Mixer,Fast Speed Jet Mud Mixer |
||

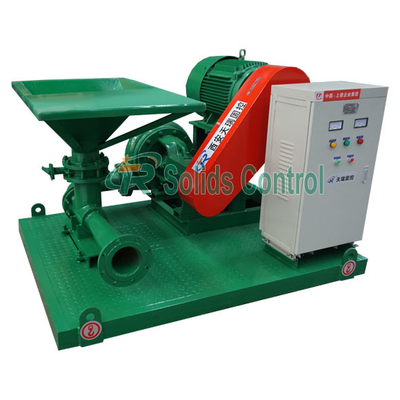

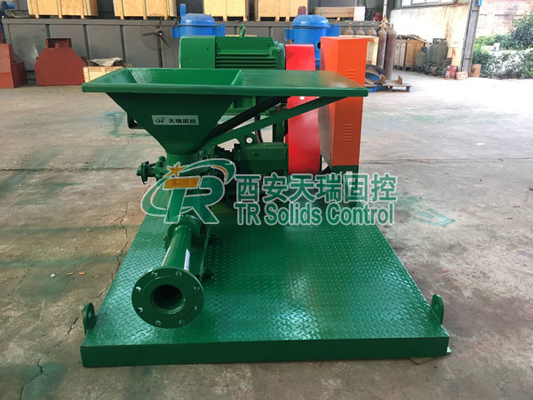

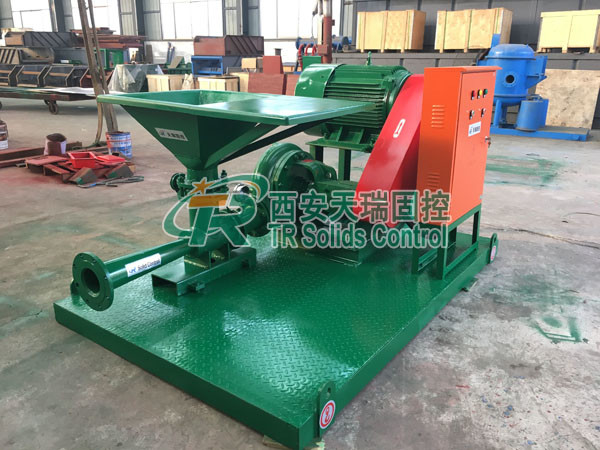

Fast Speed Drilling Fluid Jet Mud Mixer for Trenchless Tunnelling Mud Cleaning
Introduction
Jet mud mixer is a piece of equipment used together with solids control system together. It can meet the requirements of drilling fluid weighting and mixing for solids control system of 1,500 m to 7,000 m drilling. This equipment is a single jet mixer combined with 45 Kw (or 55 Kw) sand pump and a jet mud hopper or a double jet mixer of two pumps and two hoppers. It features as safe performance and convenient transportation.
Bernoulli effect is adopted in shear pipe which is flow rate is rapid with low pressure, and slow with high pressure. Pressure is low in the chamber when fluid spouts out in high speed from the jet nozzle; when fluid enters into the shear pipe, its section is enlarged and flow rate decreased so the pressure rises.
Design Features of Drilling Jet Mud Mixer
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matching Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Work Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Dimension | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our Advantage
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
