Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Matching Pump: | TRSB5*4-14J |
|---|---|---|---|
| Motor Power: | 37kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 30mm |
| Hopper Dimension: | 600*600mm | Burden Speed: | <60kg/min |
| Weight: | 1300kg | Dimension: | 2000*1650*1100mm |
| Highlight: | Centrifugal Pump Mud Mixing Equipment,Oilfield Drilling Jet Mud Mixer,Jet Mud Mixer With Hopper |
||

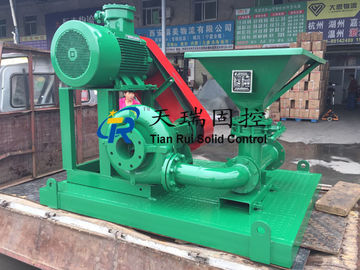

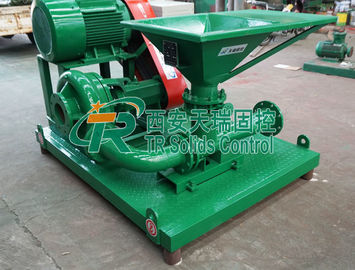

Oilfield Drilling Jet Mud Mixer with Mixing Hopper and Centrifugal Pump
Brief Introduction
Jet Mud Mixer is a kind of equipment for adding and mixing drilling fluids. Its effect is obvious to use along with shear pump. As an necessary equipment in solids control system, its main function is to change the viscosity, density, and dehydration of drilling fluids. Jet mud mixer is needed on the condition that making bentonite, chemical products and barite with clear water into drilling fluids which has specific property, or adding some additive in existing drilling fluids to change its property.
TR jet mud mixer is the equipment matched with drilling solids control equipments, uausally used to configrate and increase the proportion of drilling fluid, change density, viscosity, water lose etc. It has a more excellent effect if matched with shear pump, and also can be designed to double jet mud mixer as requirements.
Why Choose TR Jet Mud Mixer?
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our jet mud mixers are welcomed by clients for good price and high performance. Also, we have short delivery and many models for you to choose from. Nowadays TRSLH series jet mud mixer is widely used in oil & gas drilling, horizontal directional drilling, tunnel & microtunnelling, shield construction, etc. Welcome your inquiry at any time!
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
