| Model: | TRCN100-16N | Capacity: | 240m3/h |
|---|---|---|---|
| Hydrocyclone: | 16nos | Working Pressure: | 0.25-0.4Mpa |
| Inlet Size: | DN150mm | Outlet Size: | DN200mm |
| Separation Point: | 15μm-44μm | Bottom Shaker: | TRZS752 |
| Weight: | 1150kg | Dimension: | 1835*1230*1810mm |
| Highlight: | Polyurethane Desilter Hydrocyclone,High Capacity Polyurethane Mud Desilter,Polyurethane Mud Desilter |
||
High Capacity Mud Desilter for Oil and Gas Drilling , Flexible Options for Cones
Introduction

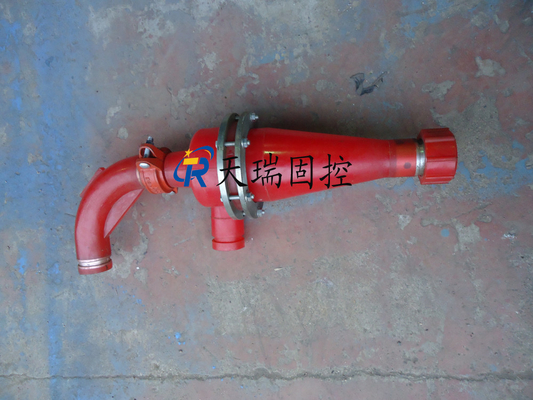

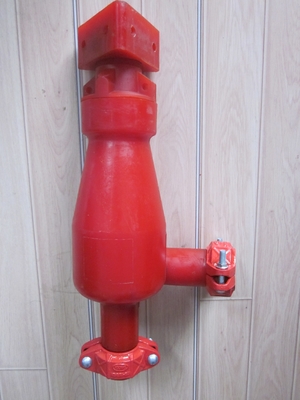

The TRCN series desilter is a type of solids control equipment designed for the treatment of drilling fluids. These devices are classified into desander and desilter based on the size of their hydrocyclones. Typically, cyclone diameters less than 6 inches are referred to as desilters and serve as the third-class control equipment in drilling operations. Commonly used sizes include 5 inches and 4 inches, which can separate solid phase particles with sizes ranging from 15 to 47 microns in drilling fluid.
Desilters can be customized based on customer requirements and capacity. The TR Solids Control desilter is widely employed in oil drilling and horizontal directional drilling applications.
Our desilter is specifically designed to isolate silts from drilling muds. The cutting point can be as low as 4 inches. When drilling muds are utilized in operations, they often become contaminated with silts. In order to reuse these muds, it is crucial to remove the silts and also recycle the slurry to dispose of them at the end of the working shift.
Advantages of TRCN Series Mud Desiter
Technical Data of TRCN Series Mud Desilter
| Model | TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
| Capacity | 60m3 | 90m3/120m3 | 180m3/240m3 | 300m3 |
| Cyclone Specs | 4” | |||
| Cyclone Qty | 4 pcs | 6pcs/8pcs | 12pcs/16pcs | 20pcs |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN100mm | DN125mm | DN150mm | DN150mm |
| Outlet Size | DN125mm | DN150mm | DN200mm | DN200mm |
| Separation Point | 15μm -44μm | |||
| Bottom Shaker | TRZS60 | TRZS60 | TRZS752 | TRZS703 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 2770*1785*1810mm |
| Weight | 550kg | 560kg/580kg | 1150kg | 1950kg |
| Remark | All desilter could be customized without bottom shaker. | |||
Application in Drilling Solids control
Our mud desilter is currently used in tunneling construction, oil & gas drilling, city bored piling, Drilling Waste Management, Oil Sludge Dewatering Systems, environment protection, Coal Bed Gas Solids Control System, trenchless HDD, micro-tunneling, mining, Oil Mud Seperation, Water Drilling etc.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
