Product Details:
Payment & Shipping Terms:
|
| Model: | TRCN100-8N | Capacity: | 120m3/h |
|---|---|---|---|
| Hydrocyclone: | 8nos | Working Pressure: | 0.25-0.4Mpa |
| Inlet Size: | DN125mm | Outlet Size: | DN150mm |
| Separation Point: | 15μm-44μm | Bottom Shaker: | TRZS60/N/A |
| Weight: | 580kg | Dimension: | 1510*1360*2250mm |
| Highlight: | Oil Drilling Mud Removal Desilter Hydrocyclone,580kg Mud Removal Equipment,Drilling Mud Hydrocyclone Desilter Cleaner |
||

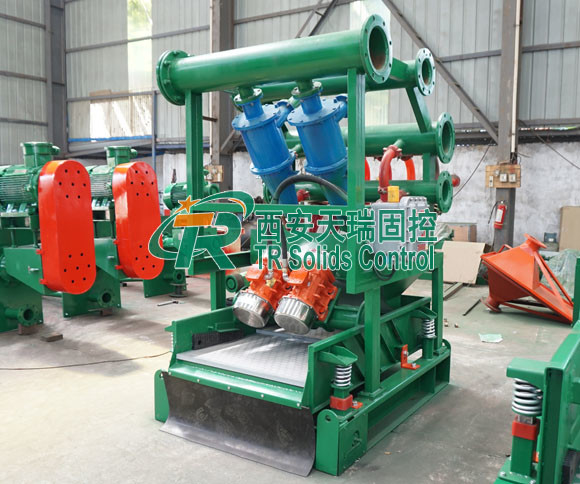

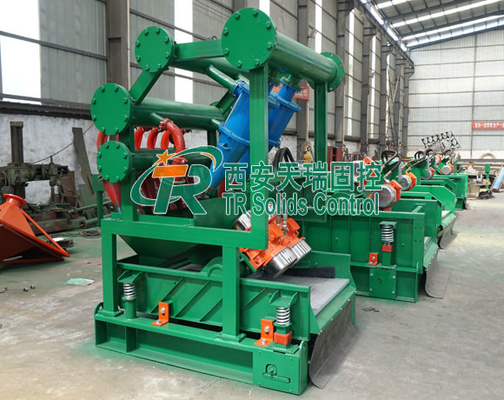

Desilter with Bottom Shale Shaker Oil Drilling Mud Hydrocyclone Desilter Cleaner
Introduction
As a solids control equipment of the third stage in drilling operation, mud desilter is used to remove solid particles of 20-40 μm in drilling liquid. The desilter of this type that has been reformed many times on the applications for years is reliable in technical performance and provides very good treatment results. Its water cyclone is of long service life and stable performance. It is applicable to various kinds of drills in the oilfields.
TRCN100×12 desilter cleaner are completed with 100mm polyurethane hydrocyclones, mud trough, manifold, motor, shale shaker, base and all necessary connections.The upper part of hydrocyclone is cylindrical with a tangential suction tube and a overflow tube in center. The lower part of hydrocyclone is cone with bottom silt discharge tube. The upper part and lower part are connected by hoop.
Main Benefits of Our Drilling Desilter:
Technical Parameters of TRCN Mud Desilter
| Model | TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
| Capacity | 60m3 | 90m3/120m3 | 180m3/240m3 | 300m3 |
| Cyclone Specs | 4” | |||
| Cyclone Qty | 4 pcs | 6pcs/8pcs | 12pcs/16pcs | 20pcs |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN100mm | DN125mm | DN150mm | DN150mm |
| Outlet Size | DN125mm | DN150mm | DN200mm | DN200mm |
| Separation Point | 15μm -44μm | |||
| Bottom Shaker | TRZS60 | TRZS60 | TRZS752 | TRZS703 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 2770*1785*1810mm |
| Weight | 550kg | 560kg/580kg | 1150kg | 1950kg |
| Remark | All desilter could be customized without bottom shaker. | |||
Product Application
Our mud desilter is widely used in Drilling Waste Management, oil & gas drilling, city bored piling, tunneling construction, environment protection, micro-tunneling, mining, Coal Bed Gas Solids Control System, trenchless HDD, Oil Sludge Dewatering Systems, Oil Mud Seperation, Water Drilling etc. Currently TR mur mud desilter has exported to many countries like Thailand, Canada, Vietnam, Egypt, Germany, UAE, US and so on. We have API & ISO certification as per standard.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
