Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Matching Pump: | TRSB5*4-14J |
|---|---|---|---|
| Motor Power: | 37kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 30mm |
| Hopper Dimension: | 600*600mm | Burden Speed: | <60kg/min |
| Weight: | 1300kg | Dimension: | 2000*1650*1100mm |
| Highlight: | mud hopper,mud mixing hopper |
||

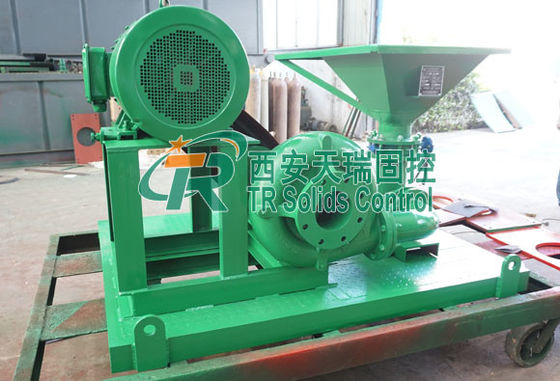

120m3/h Oilfield Solid Control Jet Mud Mixer Supplier , Jet Mud Mixer
Product Introduction
Jet Mud Mixer is a kind of equipment for adding and mixing drilling fluids. Its effect is obvious to use along with shear pump. As an necessary equipment in solids control system, its main function is to change the viscosity, density, and dehydration of drilling fluids. Jet mud mixer is needed on the condition that making bentonite, chemical products and barite with clear water into drilling fluids which has specific property, or adding some additive in existing drilling fluids to change its property.
Our mud hopper is used to concoct the drilling fluids and to change its density and viscosity. It is a new type of jet ejector device designed by combining the venturi tube with the original jet nozzle and funnel. It is not only simple in structure, but also has strong feasibility. It is an important spare part of jet mud mixer. In addition, it’s the most commonly used dosing equipment in solid control system. In the emergency situation of blowout, we can use mud hopper to mix a large amount of weighting materials uniformly in the shortest time.
Design Features of TR Oilfield Jet Mud Mixer
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Our Service
1. Material: Iron Q235B from BAOSTEEL with quality certificate.
2. Electric components: The well-known brands as Siemens, Schneider or ABB.
3. Motor: Adopt Nanyang or other national famous brand explosion-proof motor.
4. Painting: Anti-rust treatment: Galvanizing treatment for the base, hopper and the pipes.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
