Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Matching Pump: | TRSB5*4-14J |
|---|---|---|---|
| Motor Power: | 37kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 30mm |
| Hopper Dimension: | 600*600mm | Burden Speed: | <60kg/min |
| Weight: | 1300kg | Dimension: | 2000*1650*1100mm |
| Highlight: | mud hopper,mud mixing hopper |
||

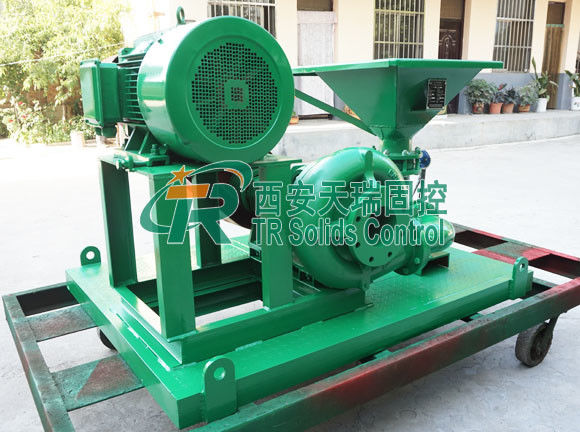

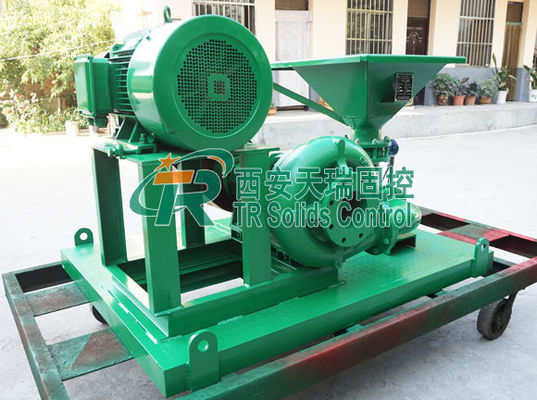

Large Capacity Directional Drilling Jet Mud Mixer with High Quality
Introduction
Jet mud mixer(mud mixing hopper) is the equipment to match with the drilling solids control equipments, regularly used to mix and adjust the proportion of drilling fluid, changing the density and viscosity etc. It has a more excellent operation if being matched with shear pump, and also can be designed as double jet mud mixer as the clients’ requirements.
TR Solids Control is a top manufacturer in China specialized in mud solids control equipment and systems design, manufacture, and sales. TRSLH series Jet Mud Mixer is used to concoct the drilling fluids and to change its density and viscosity. This device can satisfy the fluid weighting & mixing of solids control system used for 1500m-9000m drilling.
Advantages of Our TR Jet Mud Mixer:
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
The drilling fluid flow into the jet pump with certain pressure,in the jet pump fluid spouts out from jet nozzle first, then flows into shear pipe through mixing chamber. Materials will be added from hopper to mixing hopper, and move into shear pipe with the flow. During this process, they are dispersed and mixed. The mixture will enter into drilling fluid tank when flows out of the shear pipe.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
