Product Details:
Payment & Shipping Terms:
|
| Capacity: | 180m3/h | Matching Pump: | TRSB6*5-13J |
|---|---|---|---|
| Work Pressure: | 0.25 To 0.4Mpa | Motor Power: | 45kw |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 40mm |
| Hopper Dimension: | 750*750mm | Burden Speed: | <80kg/min |
| Weight: | 1450kg | Dimension: | 2200*1700*1200mm |
| Highlight: | mud hopper,mud mixing hopper |
||

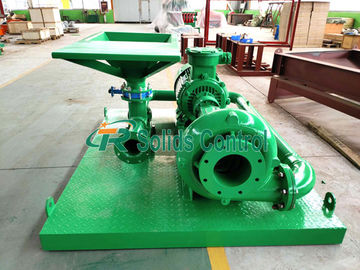

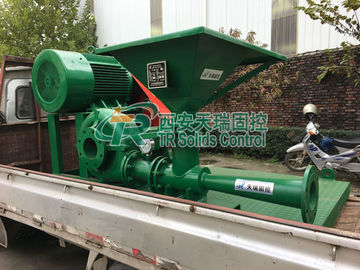

Best Price Solid Control Drilling Fluids Jet Mud Mixer for Sale
Key Introduction
Jet Mud mixeris is a special equipment to prepare and increase the drilling fluids weight by adding and mixing bentonite, change the fluid density, change the mud density, viscosity, and dehydration. The effect is more prominent matching with Shear Pump. TRSLH series jet mud mixer is a unit used together with the solids control system for petroleum drilling and horizontal directional drilling(HDD).
TR Solids Control is a professional manufacturer of jet mud mixer in China. Our jet mud mixer can be matched with other drilling solids control system. It’s safe and reliable, and easy to move. It can improve pressure head of mixed liquid, enhance dispersion effect of material, make the material recycle and mix enough in the mud tank.
Design Characterstics of Our Jet Mud Mixer
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Work Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
TR Solids Control is a professional supplier of various oilfield equipment, including oil drilling and solid control equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). TR Solids Control has become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
