Product Details:
Payment & Shipping Terms:
|
| Capacity: | 120m3/h | Matching Pump: | TRSB5*4-14J |
|---|---|---|---|
| Motor Power: | 37kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 30mm |
| Hopper Dimension: | 600*600mm | Burden Speed: | <60kg/min |
| Weight: | 1300kg | Dimension: | 2000*1650*1100mm |
| Highlight: | Matching Pump Mud Mixing Equipment,Jet Mud Mixing Equipment 120m3/h,30mm Jet Mud Mixer |
||

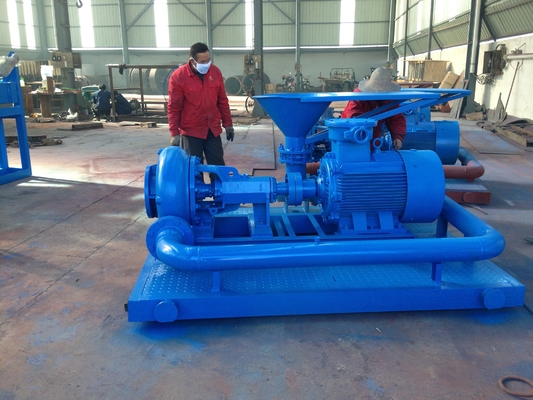

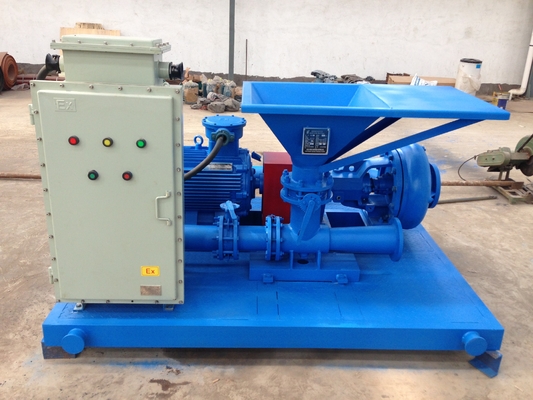

Drilling Fluid Jet Mud Mixer 37kw For Horizontal Directional Drilling
Main Introduction
Jet mud mixer(mud mixing hopper) is the equipment to match with the drilling solids control equipments, regularly used to mix and adjust the proportion of drilling fluid, changing the density and viscosity etc. It has a more excellent operation if being matched with shear pump, and also can be designed as double jet mud mixer as the clients’ requirements.
TR Solids Control is well-known manufacturer of jet mud mixer in China. Our jet mud mixer has much excellent operation if being matched with shear pump, and also can be designed to single or double jet mud mixer as the clients’ requirements. TR jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base with pipe valves. Its hopper and centrifugal pump either can be combined or be installed separately.
Main Benefits of TRSLH Series Jet Mud Mixer:
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Treating Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Working Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
