Product Details:
Payment & Shipping Terms:
|
| Capacity: | 180m3/h | Matching Pump: | TRSB6*5-13J |
|---|---|---|---|
| Motor Power: | 45kw | Work Pressure: | 0.25 To 0.4Mpa |
| Inlet Diameter: | 150mm | Nozzle Diameter: | 40mm |
| Hopper Dimension: | 750*750mm | Burden Speed: | <80kg/min |
| Weight: | 1450kg | Dimension: | 2200*1700*1200mm |
| Highlight: | Shear Type Jet Mud Mixer,Oilfield Jet Mud Mixer,45kw Mud Mixer Machine |
||

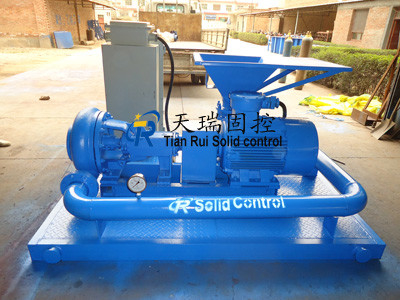

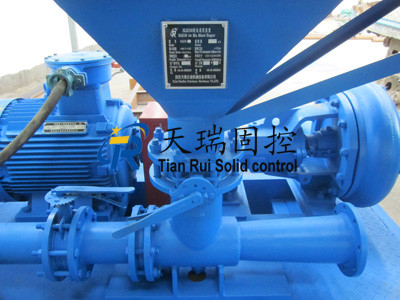

Oilfield Shear Type Jet Mud Mixer with Mixing Hopper and Shear Pump
Breif Introduction
Jet mud mixer is a combination of centrifugal pump and mixing hopper with pipelines. It is scientifically designed to be the optimal solution for mixing of both mud bulk material and mud additive chemicals into the drilling fluid. TRSLH series jet mud mixer is composed of one set(or multi-set) centrifugal pump and one set(or multi-set) jet mixing hopper installed in a base. Its hopper and centrifugal pump either can be combined to use or be installed separately.
TR Solids Control is absorbed in developing our product line continuously and offering innovative solutions to our customers. Our jet mud mixers have been exported to Russia, America, Middle East, South America, Southeast Asia, Central Asia, African, Australia, Europe etc. Our company is willing to cooperate and make common progress with friends at home and abroad with first-class products, service and reasonable prices.
Main Benefits of TR Jet Mud Mixer
Parameters of Drilling Jet Mud Mixer
| Model | TRSLH150-50 | TRSLH150-40 | TRSLH150-30 | TRSLH100 |
| Matched Pump | TRSB8×6-13J(55kw) | TRSB6×5-13J(45kw) | TRSB5×4-14J(37kw) | TRSB4X3-11J(15kw) |
| Capacity | 240m3/h | 180m3/h | 120m3/h | 60m3/h |
| Work Pressure | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa | 0.25~0.40Mpa |
| Inlet Diameter | 150mm | 150mm | 150mm | 100mm |
| Nozzle Diameter | 50mm | 40mm | 30mm | 30mm |
| Hopper Size | 750x750mm | 750x750mm | 600x600mm | 600x600mm |
| Burden Speed | ≤100kg/min | ≤80kg/min | ≤60kg/min | ≤40kg/min |
| Weight | 1600kg | 1450kg | 1300kg | 1100kg |
| Dimension | 2200*1700*1200mm | 2200*1700*1200mm | 2000*1650*1100mm | 2000*1650*1100mm |
TR Solids Control is a professional and main supplier of various oilfield equipment, including drilling fluid solid control equipment, oil drilling and service equipment, oil production equipment, OCTG, wellhead & downhole tools and spare parts. Our products have already been exported to USA, South America, Africa, Middle East, Russia and some other countries (regions). TR Solids Control has become VIP (assigned) supplier and built strategic partnership with some countries' national petroleum companies.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
