Product Details:
Payment & Shipping Terms:
|
| Model: | TRCN100-4N | Capacity: | 60m3/h |
|---|---|---|---|
| Hydrocyclone: | 4nos | Working Pressure: | 0.25-0.4Mpa |
| Inlet Size: | DN100mm | Outlet Size: | DN125mm |
| Separation Point: | 15μm-44μm | Bottom Shaker: | TRZS60/N/A |
| Weight: | 550kg | Dimension: | 1510*1160*2000mm |
| Highlight: | 4 Nos Desilter Hydrocyclone,Drilling Fluid Hydrocyclone Desander,Mud Desander Desilter Hydrocyclone |
||

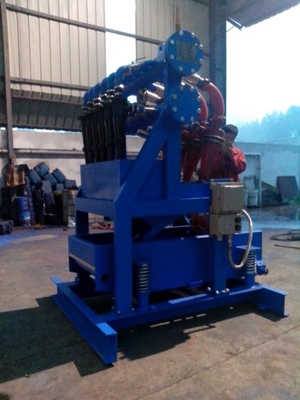

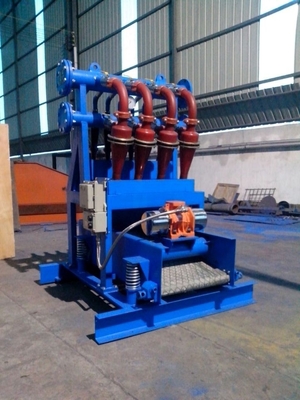

60m3/h Drilling Fluid Mud Desilter for Oilfield Drilling Mud System
Product Introduction
The desilter is a three-stage solid control equipment for drilling fluid. According to the size of the cone diameter, it is divided into desander and desilter. Usually the cone diameter is less than 6" called desilter, as the third control equipment in drilling operations. We usually use 5" and 4" cones to separate the solid phase particle size of 15-47μm in drilling fluid. According to customer requirements and capacity, we Groups of cones can be selected to go into the desilter.The Desilter works well with the rest of the solids control system.
Our mud desilters are used to separate mud and sand from drilling mud. Cut points can be as low as 4". As the mud is used in drilling operations, they are contaminated with silt. To recover this mud, the sludge needs to be separated and the mud needs to be recovered for disposal at the end of the job. The TR 4" desilter can Handles drilling fluids up to 1056 GPM.
Main Chracterstics of TRCN Mud Desilter:
Technical Parameters of Our Mud Desilter
| Model | TRCN100-4N | TRCN100-6N/8N | TRCN100-12N/16N | TRCN100-20N |
| Capacity | 60m3 | 90m3/120m3 | 180m3/240m3 | 300m3 |
| Cyclone Specs | 4” | |||
| Cyclone Qty | 4 pcs | 6pcs/8pcs | 12pcs/16pcs | 20pcs |
| Working Pressure | 0.25-0.4Mpa | |||
| Inlet Size | DN100mm | DN125mm | DN150mm | DN150mm |
| Outlet Size | DN125mm | DN150mm | DN200mm | DN200mm |
| Separation Point | 15μm -44μm | |||
| Bottom Shaker | TRZS60 | TRZS60 | TRZS752 | TRZS703 |
| Dimension | 1510*1160*2000mm | 1510*1360*2250mm | 1835*1230*1810mm | 2770*1785*1810mm |
| Weight | 550kg | 560kg/580kg | 1150kg | 1950kg |
| Remark | All desilter could be customized without bottom shaker. | |||
Application in Drilling Solids control
Our drilling mud desilter is currently used in tunneling construction, trenchless HDD, oil & gas drilling, city bored piling, Drilling Waste Management, micro-tunneling, mining, environment protection, Oil Sludge Dewatering Systems, Oil Mud Seperation, Coal Bed Gas Solids Control System, Water Drilling etc. TRCN series mud desilter conforms to both API & ISO international standard. We welcome your inquiry.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
